Bonding Electron Pairs Lone Pairs Electron Domains Shape Ideal Bond Angle (example's bond angle) Example Image
2
0
2
linear
180 °
BeCl2
3
0
3
trigonal planar
120 °
BF3
2
1
3
bent
120 ° (119 °)
SO2
4
0
4
tetrahedral
109.5 °
CH4
3
1
4
trigonal pyramidal
109.5 ° (107.5 °)
NH3
2
2
4
bent
109.5 ° (104.5 °)
H2O
5
0
5

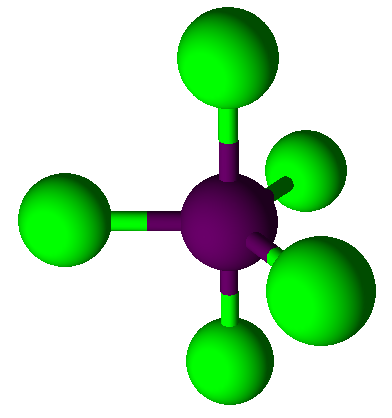

trigonal bipyramidal
90 °, 120 °
PCl5
4
1
5

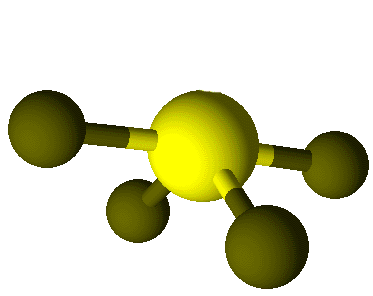

seesaw
180 °, 120 ° (173.1 °, 101.6 °)
SF4
3
2
5
T-shaped
90 °, 180 ° (87.5 °, < 180 °)
ClF3
2
3
5
linear
180 °
XeF2
6
0
6
octahedral
90 °
SF6
5
1
6
square pyramidal
90 ° (84.8 °)
BrF5
4
2
6
square planar
90 °
XeF4
7
0
7
pentagonal bipyramidal
90 °, 72 °
IF7
This page is essentially borrowed directly from Wikipedia and image credits belong to that organization or the specific uploader who created them (although they are public domain files).
